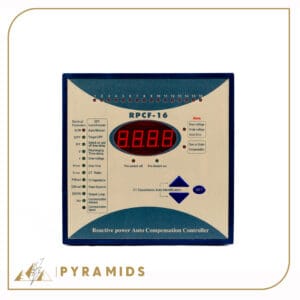

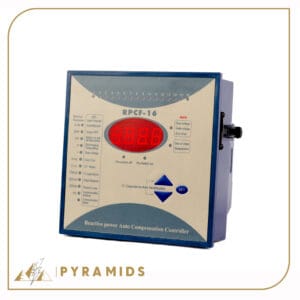

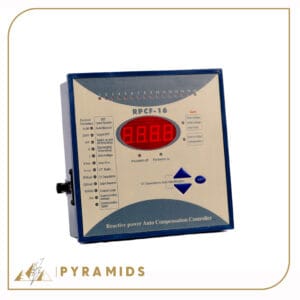

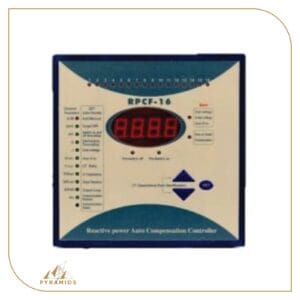

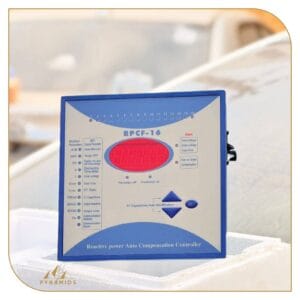

Pyramids regulators offer a variety of features that make them the ideal choice for many electrical applications. These regulators are equipped with real-time monitoring and analysis capabilities, providing superior protection against various electrical challenges. Here are some key features:
- Continuous Monitoring: It reads all measurements moment by moment such as Current (A), Voltage (V), Power Factor (PF), Reactive Power (Kvar), Dynamic Power Factor (DPF), Total Harmonic Distortion of voltage (THDv), and Total Harmonic Distortion of current (THDi).
- Comprehensive Protection: Supports protection against over-voltage and under-voltage as well as protection against harmonics.
- Multi-Mode Operation: Can operate in automatic or manual mode, providing flexibility in operation.
- Temperature Control: Reads the temperature and can control the ventilation fan to ensure optimal cooling.
- Connection Capability: Supports single-phase and three-phase connections, making it suitable for a variety of electrical systems.
- Stage Organization: Equipped with stage numbering and indicator lights for each stage, facilitating tracking and monitoring.
- These features make Pyramids regulators the perfect choice to meet your electrical needs efficiently and reliably.
- TECHNICAL SPECIFICATIONS
- No harmful gas and steam, no conductive or explosive dust, no severe mechanical vibration
- Calculate the switching capacitor capacity based on the fundamental reactive power, which can avoid any form of switching vibration.
- Correctly display the power factor of the power grid in the harmonic place.
- High power factor Measurement accuracy and wide display range.
- Real-time display total power factor (PF) and fundamental power factor (DPF).
- Real-time display THDv and THDi.
- There are 12 output methods for users to choose.
- Various control parameters are fully digital adjustable and intuitive to use.
- With two working modes: automatic operation and manual operation.
- With over-voltage and under-voltage protection.
- With voltage harmonic protection function.
- Control voltage coil: 220 V
- Frequency: 50 HZ
- Number of steps up to 16steps
