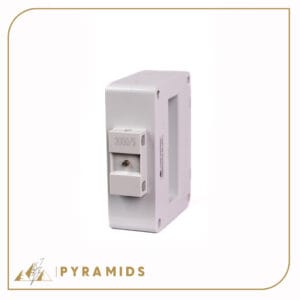

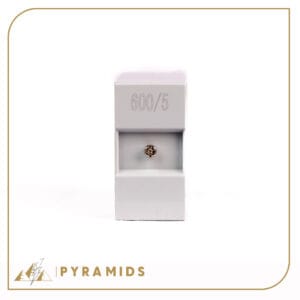

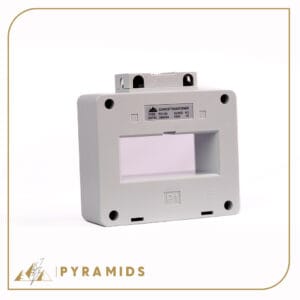

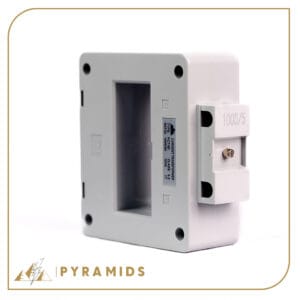

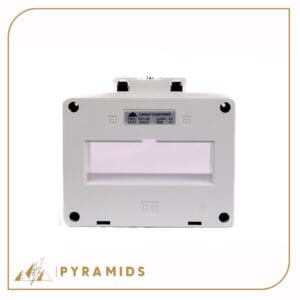

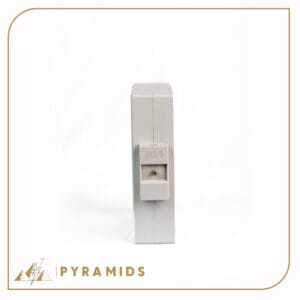

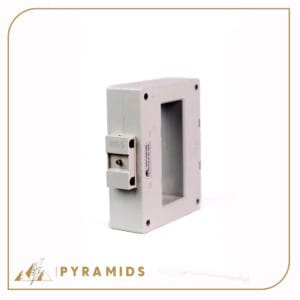

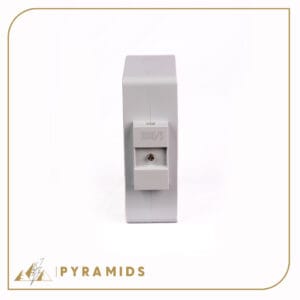

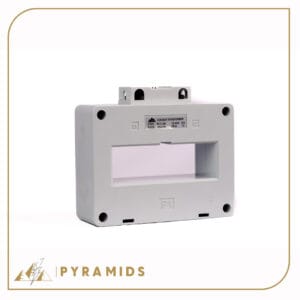

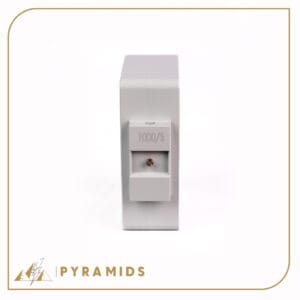

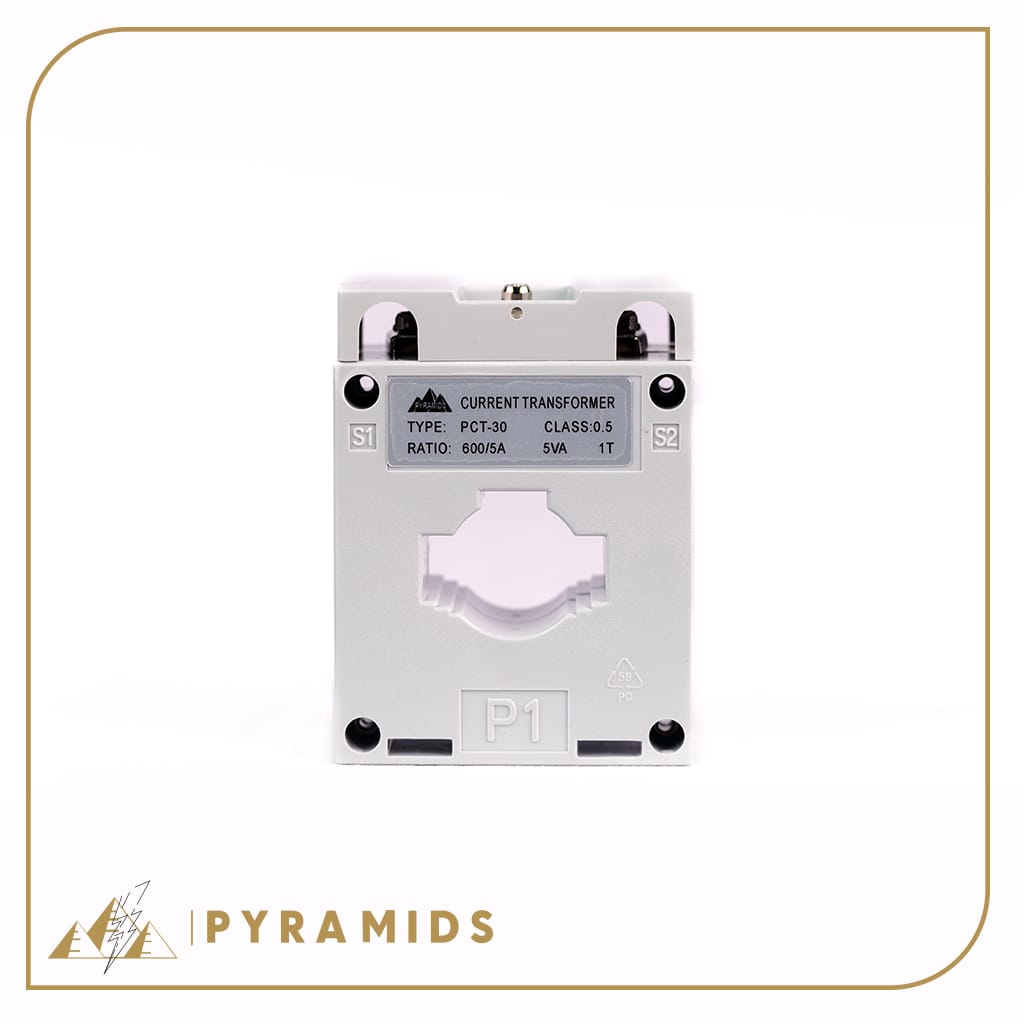

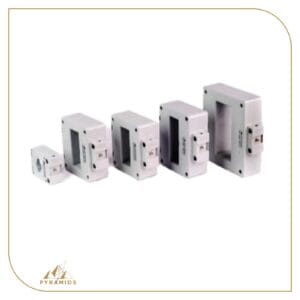

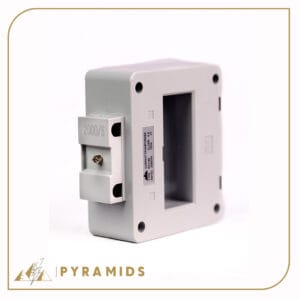

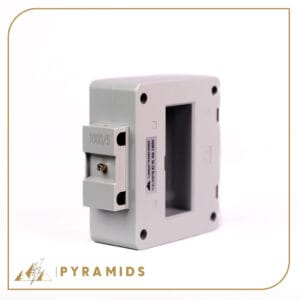

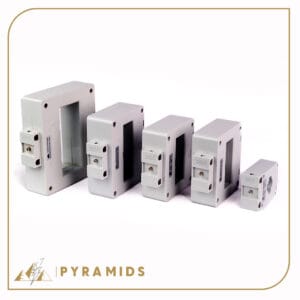

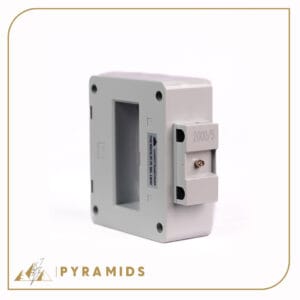

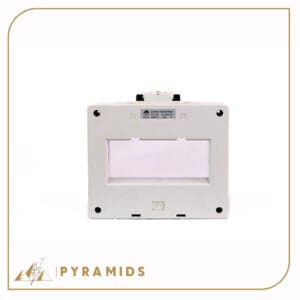

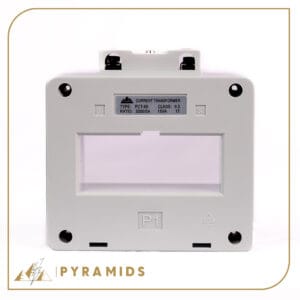

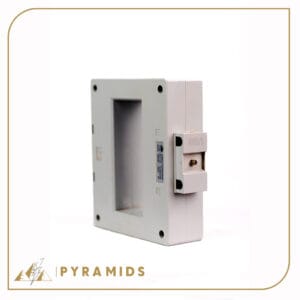

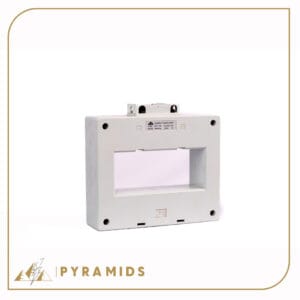

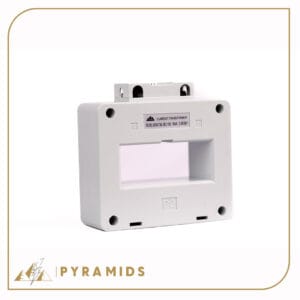

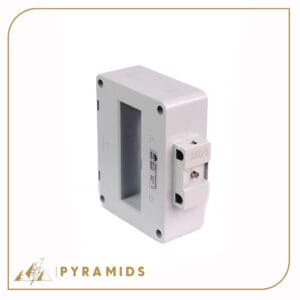

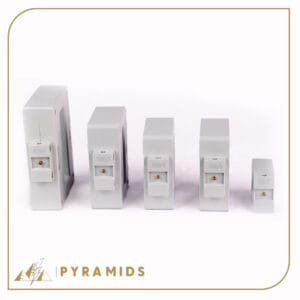

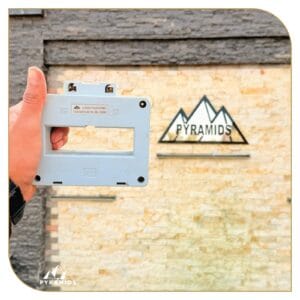

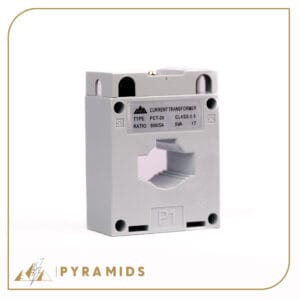

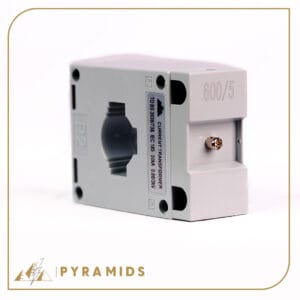

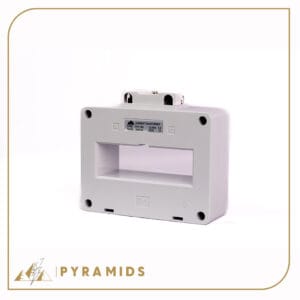

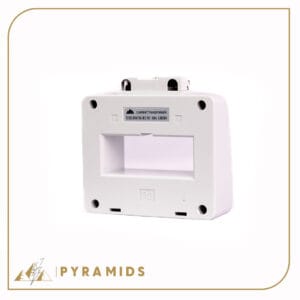

Current transformers are available from 30A/5A to 5000A/5A, making them suitable for a wide range of electrical applications Suitable for cables up to 998 mm and bus bars up to 310100.

Technical Specifications

• Maximum ambient temperature: 45°C.
• Maximum relative humidity: 95%.
• Rated power-frequency withstand voltage (r.m.s) for 1 minute: 3 KV.
• Accuracy class: 0.5S, 0.2.
• Rated continuous current: 1.2 In.
• Nominal primary current: from 30A to 5000A.
• Insulation class: ≥E.
• Rated dynamic current Ip (peak): 2.5 Ith.
• Mounting position: free.
• Protection degree: IP20.
